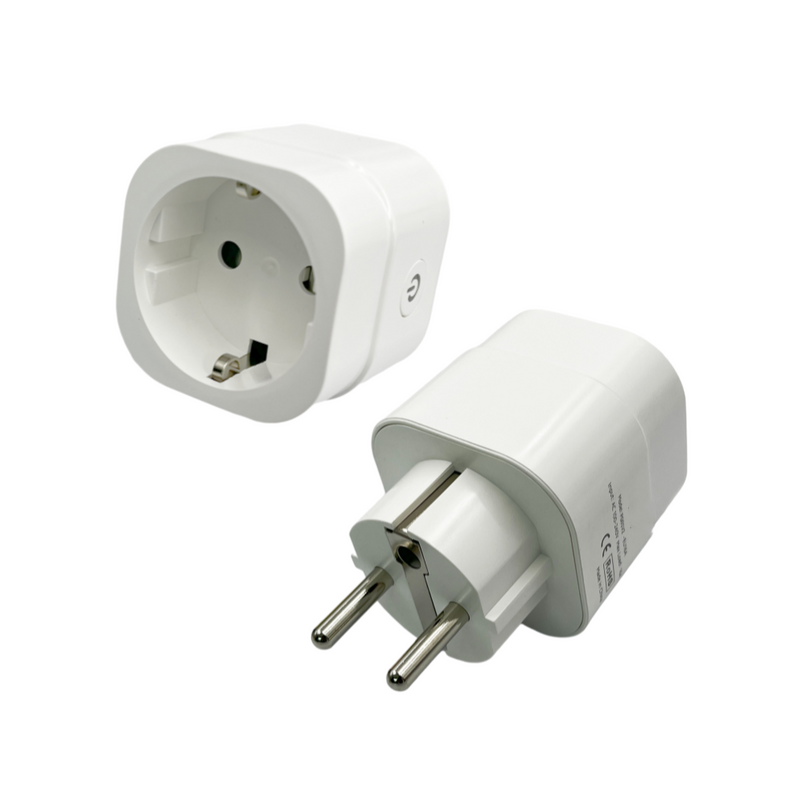

pré-flashed ESPhome Smart Plug funciona com Home Assitant Monitoramento de consumo 16A

Notice: The plugs shipped after 7th May 2022 are upgraded new version , HLW8032 consumption monitoring chipset build in, NO calibration needed, The measurement error octive power about 0.2% The measurement error of effective current is 0.5% The measurement error of effective voltage is 0.5% Officially Approved Made For ESPHome EU Plug Pre configed IOs plug and play Build in ESP8285 chip with 2M flash Automatically detect on Home Assistant Total local control with quick setup and updates. Control using MQTT, Web UI, HTTP or serial. Automate using timers, rules or scripts. Integration with home automation solutions. Incredibly expandable and flexible. How to set WiFI password of the plug Use your phone or computer search wireless until you find SSID named： Athom_xxxxxx ( xxxxxx will be address of your plug ) Then connect it After you connect it successfully, a setting window will automatically pop up. Then please input your router SSID and password. Then click save. then go to your Home Assitant It will shows new devices discovered, press continue to add it succesfully Specification Specification: *Input voltage：100-240VAC 50/60Hz *Current：16A(Max) *Power rating：2200W *Product Size：L51*W51*H85mm *Standard：EU *Wireless standard：IEEE802.11b/g/n,2.4GHz *Housing Color：Whtie *Operation Temperature：-20℃～+50℃ *Plastic material:ABS+PC *Fire-protection rating:94-V0 *Package Size：62*62*86mm *Weight：80g IO Configs GPIO# Component GPIO0 None GPIO1 None GPIO2 None GPIO3 CSE7766 Rx GPIO4 None GPIO5 Button1 GPIO9 None GPIO10 None GPIO12 Relay1 GPIO13 Ledki GPIO14 None GPIO15 None GPIO16 None FLAG None The old version ( Shipped before 7th May 2022): GPIO#Component GPIO0None GPIO1None GPIO2None GPIO3Button1 GPIO4BL0937 CF GPIO5HLWBL CF1 GPIO9None GPIO10None GPIO12HLWBL SELi GPIO13Led1i GPIO14Relay1 GPIO15None GPIO16None FLAGNone For YAML Please visit https://github.com/athom-tech/athom-configs
